Profile 10


Profile 10

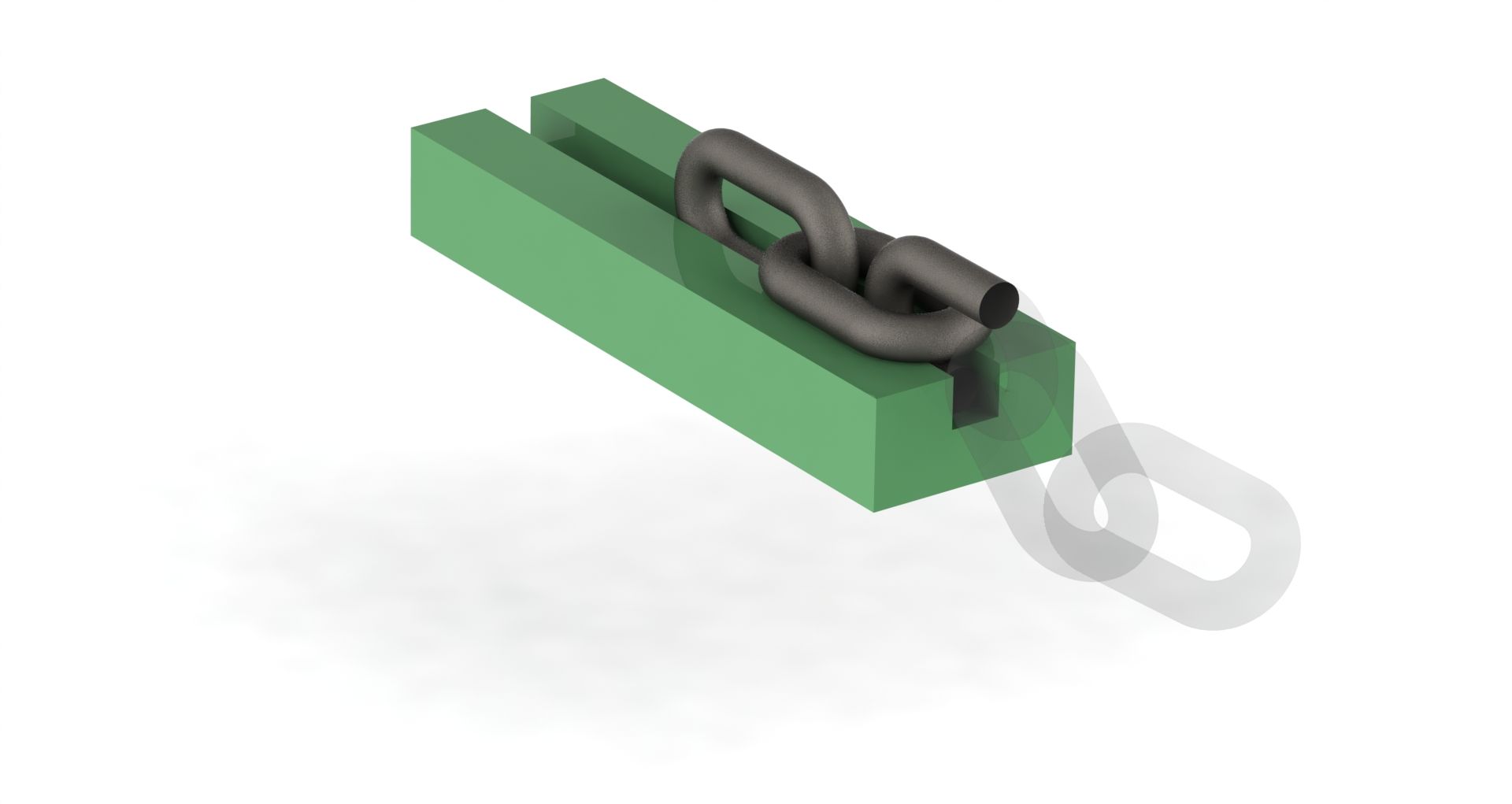

Sliding rail for round link chains

Download:
Data sheet profile 10

Profile 10


B
H
d
h1
30 15 7 7
35 20 9,5 9
45 25 11,5 11
55 30 15 15


All special sizes available. ( Tolerances acc. to DIN 2768 medium )
